IP54 Car Parking Barrier Gate Automatic Electronic Access Control System

  • img.alt
Place of Origin China
Brand Name Gaolei
Certification CE
Model Number GL-DZ
Minimum Order Quantity 1
Price $580.88
Packaging Details Packed well with wooden boxes
Delivery Time 7-14day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100Pieces/day
Product Details
Place Of Origin Guangdong MTBF 10 Million Cycles
Boom Length Max.6mtr Boom Direction Exchangeable
Housing Painting Powder Coating Boom Type Straight Boom
Startup Speed 3/6s, 50hz Rated Voltage 220V /110V±10%
Idle Rotating Speed 1400r/m
High Light

IP54 Car Parking Barrier Gate

,

Automatic Car Parking Barrier Gate

,

1400r/m Car Barrier Gate
Leave a Message
Product Description

Automatic Electronic Access Control System Car Parking Barrier Gate



Model 101-11 101-118 101-13 101-16 101-23 101-26 101-33 101-36 101-46 101-56
Running time 1 sec 1.8 sec 3 sec 6 sec 3 sec 6 sec 3 sec 6 sec 6 sec 6 sec
Boom type Straight 90° folding 180° folding 2 fencing 3 fencing
Max Boom length 3m 4m 4.5m 6m 3m 5m 3m 5m 4.5m 4m

Boom dimension

(WxH)mm

 45*80mm 45*100mm
Boom weight 3.2 kg 4.5kg 5.2kg 6.4 kg 6.4 kg 10 kg 7.9 kg 13.4 kg 11.1 kg 14 kg
Voltage 220V±10%, 110V±10%
Frequency 50/60HZ
Motor voltage AC220V/110V
Power 80W
Working Temperature -35℃~+75℃
Protection grade IP54
MTBF 5000000 times


1. Low cost: the system operating cost is low, cost of each ticket is as low as a few determined deposit money

2. Leading technical maintenance: the leading thermal printing technology; core equipment maintenance; tickets local procurement, which can be bought and then used prior without any prior printing prcessing links, quick and easy replacement;

3. Double messages: the face can be designed, clear admission number, time, vehicle information , and the naked eye can be machine-readable visually;

4. Off-grid operation: the computer billing of the vehicle entering and exiting, with the expansion of a powerful master control system, easy to be off-grid operation;

5. Huge amount of memory card: the ballot box can store more than 500-1000 pieces of cards, unparalleled ease of system operation;

6. Problems solutions: the solution to the current car park management in the operating high costs and the card easily lost problem, and the best alternative to long-standing problem;

7. Wide range of applications: in particular for the car parking lots for large communities, shopping malls, sports centers and other public and various quarters of the reconstruction project;

8.Reliability: print head life is 37 million character row(MCBF), print cutter life is 1 million

IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 0IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 1IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 2

Control Barrier On Smartphone (Optional)

Control the barrier on your smartphone via WIFI, also program the barrier on your smartphone such as set opening/closing time setting.

*Dashou App should be installed in your smartphone, and Dashou WIFI module should be installed in barrier controller

IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 3

TCP-IP Port for Easy Integration (Optional)

The barrier provides optional TCP-IP RJ45 port, which can integrate the barrier with your own system conveniently, so you can control the barrier by your own system.

*Dashou Ethernet module should be installed in the barrier controller, and communication protocol will be provided by Dashou

IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 4

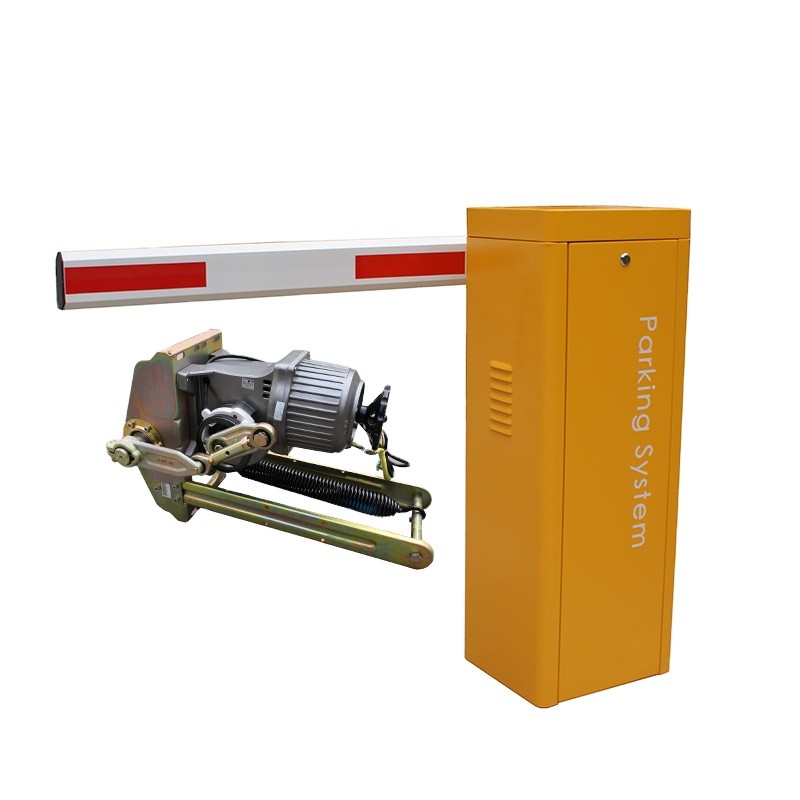

Free-maintenance DC Brushless Motor

10 million cycles MTBF & 100% duty cycle

Free-maintenance DC24V brushless servo torque motor ensures 10 million cycles MTBF long life span; 100% duty cycle makes barrier continuously work at 24*7 hours; Max. 50W super low consumption makes barrier environment friendly but outputs super strong torqueIP54 Car Parking Barrier Gate Automatic Electronic Access Control System 5

LED Illumination Makes Boom Visible

LED Illumination bar can be installed onto boom to make boom visible in the night, so that drivers can view barrier and boom clearly. Also LED decorates barrier gate.

IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 6

Backup Solar Panel or Lead-acid Cell

DC motor barrier can be powered by solar panel or lead-acid cell for back up power supply. Especially solar power is environment friendly which is good for earth.IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 7

IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 8

Guangdong Gaolei Intelligent Technology Co., Ltd. is located in Nanhai District, Foshan City, Guangdong Province. Our company is a professional enterprise engaged in the production and research and development of high-end security equipment and facilities.The main products of our company include lifting steel columns, tire killer devices, roadblock machines and other explosion-proof traffic security products, which have passed the quality inspection of a "Safety and police electronic product Quality Inspection Center" of the Ministry of Public Security of China, and have obtained the relevant qualification and certificate.


Our production equipment is widely used in public security, armed police forces, key government units, schools, scenic spots and commercial centers and other scenes.
Our company has domestic advanced automatic CNC machining center, laser cutting machine, robot welding, automatic wire drawing equipment and other large industrial equipment, for the lifting column industry to provide professional production and processing services.Our company has seven production workshops, including profile workshop, accessories workshop, movement workshop and quality control center, covering an area of 10,000 square meters.Our company has a professional engineer R&D team, has a strong product R&D ability and non-standard project production experience.Our company always focuses on customer needs, we can meet the needs of different customer groups to customize personalized products, to provide customers with professional services.

IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 9

IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 10IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 11IP54 Car Parking Barrier Gate Automatic Electronic Access Control System 12

FAQ
1. Who are we?
We are Guangdong Gaolei Intelligent Technology Co., Ltd located in Guangdong, China, starting steel bollard business from 2018. We sell to domestic market(approx 80.00%),overseas market(approx 20.00%). Now there are total around 110 employees in our factory.

2. How can we guarantee quality?
Always a pre-production sample before mass production.
Always final debugging and testing before shipment.

3. What can you buy from us?
Automatic steel rising bollards, semi-automatic steel rising bollards , removable steel bollards, fixed steel bollards, manual steel rising bollards and other traffic safety products.

4. Why should you buy from us ?
Guangdong Gaolei Intelligent Technology Co., Ltd. is located in Nanhai District, Foshan City, Guangdong Province. Our company is a professional manufacturer engaged in the production and research and development of high-end traffic security equipment and facilities.

5. What services can we provide?
Accepted Delivery Terms: Air freight , Land freight, Sea freight.
Accepted Payment Currency: USD, EUR, CNY ,etc..
Accepted Payment methods: Alibaba Escrow,T/T,WU,MoneyGram, Paypal,Visa,MasterCard, etc..
Language Spoken:English, Spanish,Chinese.
