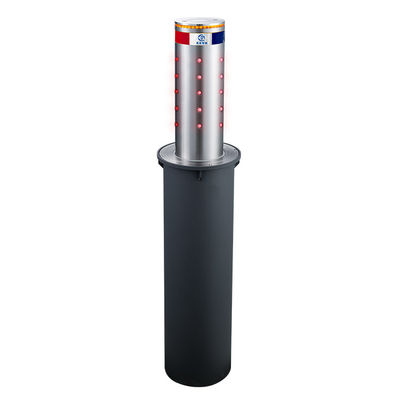

3.5 Seconds Rise Electric Parking Bollards 3 Seconds Fall Intercept 600mm LED Bollard

Place of Origin China
Brand Name Gaolei
Certification CE
Model Number GL-QM6-168JS
Minimum Order Quantity 1
Price 799-820
Packaging Details wooden box
Delivery Time 7-14day
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 100
Product Details
Product Name Automatic Bollards Automatic Bollards Stainless Steel
Application Railway Station Surface Treatment Polished Finished
Weight 110kg Rising Speed >250mm/s,duration 2.5-2.7s,stroke 600mm)
Core Driver Electro-hydraulic Actuator Pressure Capacity Static 30 Tons, Dynamic 60 Tons
High Light

Intercept 600mm LED Bollard

,

3.5 seconds rise electric parking bollards

,

electric parking bollards 3 seconds fall

Leave a Message
Product Description
Automatic Rising Bollard Vehicle Access Control Traffic Barrier Parking LED Bollard
Key Specifications:
Column height
600mm
Thickness
6mm
Diameter
219mm
Rise time
3.5 seconds
Fall time
3 seconds
Equipment size
φ400*830mm
Intercept height
600mm
Cylinder diameter
219mm
Cylinder thickness
6mm
Embedded depth
830mm
Cylinder
304 stainless steel
Cylinder thickness
6mm
Flange
high-strength aluminum alloy hard anodized
Flange thickness
10mm
Embedded barrel
A3 steel powder spraying
Piston rod
QPQ salt bath nitriding treatment
Cylinder head
QPQ salt bath nitriding treatment
Piston rod diameter
18mm
Hydraulic cylinder shell
304 stainless steel
Surface treatment of hydraulic cylinder
oxidation
Rail material
QPQ salt bath nitriding treatment
Rail diameter
16mm
Reflective film
American 3M DG third-generation diamond-level full prism technology
LED warning light
highlight, colorful, gradual change
